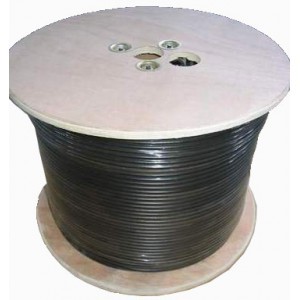

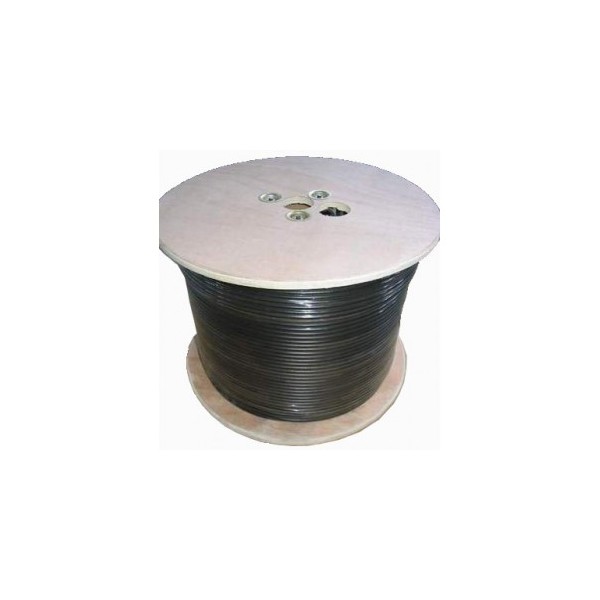

Kabel Coaxial Commscope RG6


Kabel Coaxial RG-6 merk CommScope (USA), Harga per 1 roll (305 meter).

Type SAT660BV Frekwensi s.d. 3GHz.

Salah satu type kabel RG6 Commscope digunakan dalam Project USO.

Lebih detail

Banting harga!
Rp. 620.000

Rp. 650.000 incl. tax

RG6


10 jumlah 15 jumlah
-Rp. 10.000 -Rp. 15.000

Spesifikasi Teknis Kabel Coaxial CommScope RG 6



Construction Materials
Construction Type Non-armored
Center Conductor Material Copper-clad steel wire
Dielectric Material Foam FEP
Jacket Material PVC
Shield (Braid) Coverage 60 %
Shield (Braid) Gauge 34 AWG
Shield (Braid) Material Aluminum
Shield (Tape) Material Aluminum/Poly

Dimensions
Cable Length 305 m | 1000 ft
Cable Weight 26.00 lb/kft
Diameter Over Dielectric 4.3180 mm | 0.1700 in
Diameter Over Jacket 6.071 mm | 0.239 in
Diameter Over Jacket Tolerance ±0.006 in
Diameter Over Shield (Tape) 5.207 mm | 0.205 in
Jacket Thickness 0.381 mm | 0.015 in
Jacket Thickness, minimum spot 0.254 mm | 0.010 in

Electrical Specifications
Capacitance 50.9 pF/m | 15.5 pF/ft
Characteristic Impedance 75 ohm
Characteristic Impedance Tolerance ±3 ohm
Conductor dc Resistance 28.60 ohms/kft
Dielectric Strength, conductor to shield 2000 Vdc
Jacket Spark Test Voltage 2500 Vac
Nominal Velocity of Propagation (NVP) 84 %
Shield dc Resistance 9.00 ohms/kft
Structural Return Loss 15 dB @ 1000–3000 MHz| 20 dB @ 5â 1000 MHz
Structural Return Loss Test Method 100% Swept Tested

Environmental Specifications
Environmental Space Plenum
Flame Test Method CMP
Safety Standard cETL|ETL
UL Temperature Rating 60 °C | 140 °F

General Specifications
Application Video
Cable Type Series 6
Jacket Color Black
Product Number 2275V
Center Conductor Gauge 18 AWG
Center Conductor Type Solid
Packaging Type Reel

Mechanical Specifications
Minimum Bend Radius, loaded 20 times
Minimum Bend Radius, unloaded 10 times

Â

Electrical Performance
Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft)
1 MHz 1.25 0.38
10 MHz 2.30 0.70
50 MHz 4.85 1.48
100 MHz 6.59 2.01
200 MHz 9.38 2.86
400 MHz 13.87 4.23
700 MHz 19.55 5.96
900 MHz 22.83 6.96
1000 MHz 24.44 7.45
1200 MHz 27.06 8.25
1450 MHz 30.64 9.34
1800 MHz 35.06 10.69
2200 MHz 37.85 11.54
2500 MHz 38.38 11.70
3000 MHz 42.87 13.07

Regulatory Compliance/Certifications

Agency Classification
RoHS 2002/95/EC Compliant
ISO 9001:2008 Designed, manufactured and/or distributed under this quality management system
