NEC NP63 DLP Projector, 3000 ANSI Lumens ( standard luar ruangan ), Fully Automatic Projector. Ideal untuk meeting, function hall, digital signage in lobbie, broadcasting, public venues, retail areas, transportation applications, dan financial environments.
Berat kirim 4 kg. Kirim sleuruh Indonesia via JNE.

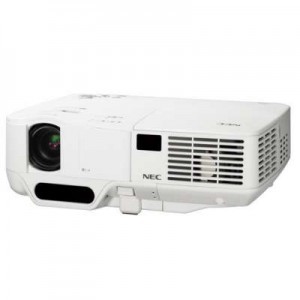

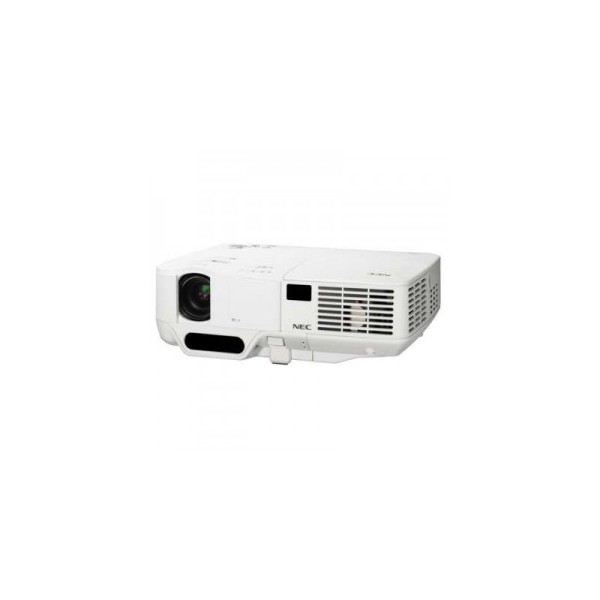

NEC NP63 DLP Projector
Garansi Resmi 2 Tahun Service dan Sparepart, Lampu bergaransi 500 jam atau 1 tahun.
Capable of projecting on a large screen in a wide venue even with a compact body*
* : Depending on the use environment
| 1.Insert the power cord into the outlet. 2.Set the projector in the proper position. |
3.Start projecting images by automatically adjusting the focus and correcting any trapezoidal distortion. |
 |
 |
| A portable, compact body with sufficient brightness for large screen presentations in large conference rooms. | Light and easy-to-use, the projector is a convenient business tool for use anywhere, anytime. |
| 1.Insert the power cord into the outlet. 2.Set the projector in the proper position. |
3.Start projecting images by automatically adjusting the focus and correcting any trapezoidal distortion. |
 |
|
By inserting the power cord into an outlet, projection will start immediately without pressing the power button. If the initial input selection is set to Auto, simply by turning on the power, the projector automatically judges the input signal and projects the images.
When turning on the power, adjusting the zoom operation, or removing the main unit, the focus sensor measures the distance between the projector and the screen and adjusts the focus of the projected images automatically.
If the projector is installed at an angle to project images on a screen, it may result in trapezoidal distortion of the projected images. In this case, the acceleration sensor built into the main unit senses the inclination of the unit in the vertical direction and then corrects for any trapezoidal distortion in the projected images automatically to project square images.
(+/- 40 degrees from the projection angle).
The opening and closing of the lens cover is connected to the AV mute function, so when the lens cover is closed during projection, the image and sound are stopped. This is a very useful function when you want to stop the use of the projector during a meeting.
The projector employs the Carbon Meter indicating the reduced amount of CO2 emissions in Eco Mode. Visually confirm the numerical value indicating the reduction in CO2 emissions in comparison with Eco Mode Off operation.
It is possible to turn off the power of the projector by using the power supply tap with a switch during projecting images or after turning off the main power even if the cooling fan is still operating. Since it is not necessary to wait for the cooling fan to stop, the projector can be promptly put away.
By employing the colour wheel with six segments (red, green, blue, cyan, white and yellow) and BrilliantColor with superior reproducibility of neutral colours, images of natural scenery can be projected more vividly.
Furthermore, variable colour reproduction according to the purposes of use is available by employing Variable Illumination, a technology varying the lamp intensity being irradiated to the respective segments of the colour wheel. NEC provides a setting that emphasizes the colour yellow.
The above illustrations are for display purposes only and differs from the actual product.
Isi Paket
| Screen Size (Inch) |
Throwing Distance (m) | Bottom Height (cm) |
|
| Wide | Tele | ||
| 33 | - | 1.44 | 7.0 |
| 40 |
1.45 | 1.76 | 8.5 |
| 60 | 2.20 | 2.66 | 12.7 |
| 80 |
2.94 | 3.56 | 16.9 |
| 100 |
3.69 | 4.46 | 21.2 |
| 120 | 4.43 | 5.36 | 25.4 |
| 150 |
5.55 | 6.71 | 31.8 |
| 180 | 6.67 | 8.06 | 38.1 |
| 200 | 7.42 | 8.96 | 42.4 |
| 240 | 8.91 | 10.75 | 50.8 |
| 300 | 11.14 | 13.45 | 63.6 |
The values in the tables are design values and may vary.
NEC Projector Throw Distance Calculator : A link is opened in a new window. NP64/NP63/NP54/NP43
| model name | NP63 | |||||
| DLP Chip | 0.55 inch DLP (Aspect Ratio 4:3) | |||||
| Resolution*1 | 1024 x 768 pixels | |||||
| Lens | Manual Zoom (Zoom ratio 1 to 1.2) / Auto Focus*2 (Effective Range : 1.5m to 5.5m), Manual Focus F2.2-2.34, f=20.4-24.5mm | |||||
| Lamp (Eco Mode On / Eco Mode Off) | 170W / 220W AC | 170W / 200W AC | ||||
| Lamp Life*3 (Eco Mode On / Eco Mode Off) | 3500H / 2500H | |||||
| Image Size (Projection Distance) | 33 to 300 inch (1.44m to 13.45m) | |||||
| Colour Reproduction | 16.7 million colors simultaneously, Full colours | |||||
| Light Output*4*5 | Eco Mode Off | 3000 ANSI lumens | 2600 ANSI lumens | 2300 ANSI lumens | ||
| Eco Mode On | Approx.75% of Eco Mode Off | Approx.85% of Eco Mode Off | ||||
| Contrast Ratio (White / Black)*5 | 1600:1 | |||||
| Maximum Resolution | UXGA (1600 x 1200) with scaling technology | |||||
| Scan Rate | Horizontal | 15kHz to 100kHz (RGB : 24kHz or over) | ||||
| Vertical | 50Hz to 120Hz (Signals with higher than refresh rate 85 Hz support resolutions of 1024 x 768 or lower.) |
|||||
| Keystone Correction | Vertical | Auto/Manual Approx.±Max 40 degrees | ||||
| Input Terminals | 1 Computer Input | 1 D-Sub Mini 15pin | VGA, SVGA, XGA, WXGA, SXGA, SXGA+, UXGA RGB : 0.7Vp-p/75Ω H/V Sync : 4.0Vp-p/TTL Level Composite Sync : 4.0Vp-p/TTL Level Sync on G : 1.0Vp-p/75Ω(with Sync) Negative Polarity |
|||
| 1 Stereo Mini Jack | Stereo L/R 0.5Vrms/22kΩ or over | |||||
| 1 Component Input | 1 D-Sub Mini 15pin (Shared with Computer IN) |
Y : 1.0Vp-p/75Ω(with Sync) Cb, Cr (Pb, Pr) : 0.7Vp-p/75Ω Compatible signals : 480i, 480p, 720p, 1080i/60Hz, 576i, 576p, 1080i/50Hz DVD Progressive (50/60Hz) |
||||
| Audio Input is Shared with Computer IN | Same as Computer IN | |||||
| 1 S-Video Input | 1 Mini DIN-4pin | Y : 1.0Vp-p/75Ω C : 0.286Vp-p/75Ω |
||||
| Audio Input is Shared with Computer IN | Same as Computer IN | |||||
| 1 Video Input | 1 RCA pin | Compatible Video : 1.0Vp-p/75Ω Compatible signals : NTSC/NTSC4.43/PAL/PAL-N/PAL-M/PAL-60/SECAM |
||||
| Audio Input is Shared with Computer IN | Same as Computer IN | |||||
| USB Port | Type A | USB2.0 (for USB memory) |
- | USB2.0 (for USB memory) |
- | |
| Control Terminals | PC Control | 1 Mini DIN-8Pin | RS-232C | |||
| Built-In Speaker | 0.3W Monaural | |||||
| Quietness (Eco Mode On / Eco Mode Off) | 32dB / 37dB | |||||
| Environment | Operational Temperatures | 5°C to 40°C ([ECO MODE] is set automatically to [ON] at 35°C to 40°C / [ECO MODE] is set automatically to [ON] at 30°C to 40°C when used in HIGH ALTITUDE), 20% to 80% Humidity (Non-Condensing) |
||||
| Storage Temperatures | -10°C to 50°C, 20% to 80% Humidity (Non-Condensing) | |||||
| Power Requirement | NP64 : 100 to 240V AC, 50Hz/60Hz | NP63G/NP63+ : 200 to 240V AC, 50Hz/60Hz | NP54G/NP54+ : 200 to 240V AC, 50Hz/60Hz | NP43 : 100 to 240V AC, 50Hz/60Hz NP43G/NP43+ : 200 to 240V AC, 50Hz/60Hz |
||
| Input Current | NP64 : 3.2A - 1.4A | NP63G/NP63+ : 1.5A | NP54G/NP54+ : 1.5A | NP43 : 2.8A - 1.2A NP43G/NP43+ : 1.4A |
||
| Power Consumption |
Eco Mode Off | 100 - 130V | 292W | 287W | 268W | 266W |
| 200 - 240V | 277W | 272W | 255W | 252W | ||
| Eco Mode On | 100 - 130V | 223W | 221W | 224W | 221W | |
| 200 - 240V | 213W | 212W | 214W | 212W | ||
| Power-saving Mode | 100 - 130V | 3.2W | ||||
| 200 - 240V | 3.7W | |||||
| Heat Dissipation | 979BTU (Max) | |||||
| Dimensions (W x H x D) | 246mm x 72mm x 182㎜ (Not Including Protrusions, with Lens Cover Open） | |||||
| Weight | 1.7kg | |||||
| Accessories | Remote control, Signal cable (MiniD15-MiniD15), Power cable, Soft case, User's manual(CD-ROM), Quick setup guide, Important information | |||||
| Regulations | For United States | UL Approved (UL 60950-1), Meets FCC Class B Requirements | ||||
| For Canada | C-UL Approved (CSA 60950-1), Meets DOC Canada Class B Requirements | |||||
| For Asia/Oceania | IEC60950-1, Meets AS/NZS CISPR.22 Class B | |||||
| For Korea | KC (safety : K60950-1, EMC : K00022, K00024, K61000-3-2) | |||||
| For China | GB4943, GB9254, GB17625.1 | |||||
| For Russia | Gost R 60950-1, 51318.22, 51317.3.2./3.3. | |||||
| *1 : | Effective pixels are more than 99.99%. |
| *2 : | Auto focus functions are accurate within the range of approximately 1.5m to about 5.5m. If the throwing distance is 1.5m, the screen size is 33 inches, while at a distance of 5.5m, the screen size is 149 inches. If the distance from the projector to the screen exceeds 5.5m, the focus must be adjusted manually. Depending on the colour of the screens or other environmental conditions, the operational range may be narrowed or the equipment may not operate properly. If a transparent screen is used, malfunctions may occur. Obstacles between the screen and the projector may cause the focus sensor to malfunction. When the main unit is moved slowly, this function may not activate. If the screen is moved, this function may not activate. |
| *3 : | Lamp life is defined as the average time span for the brightness of the lamp to be reduced by half, it does not refer to the warranty period for the lamp. |
| *4 : | This is the light output value (ANSI lumens) when the [PRESET] mode is set to [HIGH-BRIGHT]. If any other mode is selected as the [PRESET] mode, the light output value may drop slightly. |
| *5 : | Compliance with ISO21118-2005 |
| *6 : | The Bluetooth® USB adapter (NP01BA) is a dedicated adapter for our projectors. The USB adapter (NP01BA) may not be available in some regions. |
| All specifications are subject to change without notice. | |
