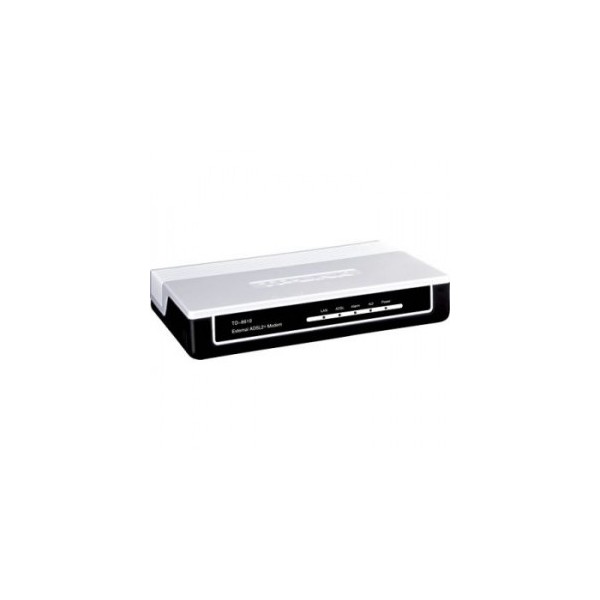

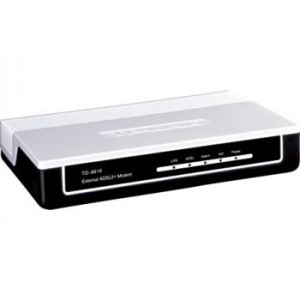

TP-Link 8817 ADSL Modem 1 Port (USB)


The TP-Link ADSL2+ Modem Router (TD-8817) combines DSL modem and 1-port 10/100 Ethernet router. Provides a USB interface through which you can connect to the router. Supports the latest ADSL2/2+ standards to provide higher performance (up to 24Mbps downstream) and longer reach from your Internet Service Provider.

Lebih detail


Rp. 175.000

TPL-887


  • Latest ADSL standards for superior performance: up to 24Mbps downstream
  • Various QoS policies enable various application, meeting peoples different needs
  • High speed DSL connection, sharing Internet access

You can also create a wired network to share your high-speed Internet connection, documents, photos, music, videos, and printers.


The TD-8817 includes a built-in QoS engine that helps prioritize Internet traffic to enable smooth Internet phone calls (VoIP) and ag-free online gaming. In addition, this device includes Dual Active Firewalls (Packet filtering and NAT) to help protect your network from potential attacks from across the Internet.

Setting up the TD-8817 is simple since it automatically detects your DSL settings to quickly establish a connection to the Internet.

The TD-8817 also supports TR-069 which automatically updates the firmware and other settings when they become available from your ISP.

Featuring high ADSL performance, various QoS policy, easy-to-use, TD-8817 is your best choice to access to the internet.

The device comes with a CD with an Easy Setup Assistant that helps you step by step to configure your Internet connection. This feature allows even novice users to setup the router products without sacrificing any key features, just play the AUTO-RUN CD bundled to have your network set up quickly & hassle-free.

FITUR PRODUK:

  • Access a high-speed DSL Internet connection
  • Up to 24Mbps downstream speed
  • Supports Annex M, which can double upstream data rates
  • Connect your computer using Ethernet or USB
  • QoS prioritization based on ToS, DSCP, service type or 802.1p
  • Triple Active Firewalls: SPI, NAT and Packet Filter
  • Supports DHCP, Universal Plug-and-Play (UPnP), and includes a user-friendly Setup Wizard which takes you through configuring your network, step by step
  • Administer and Upgrade the Router Remotely over the Internet


Software Specification
ADSL Features
 Full-rate ANSI T1.413 Issue 2
 ITU-T G.992.1 (G.dmt)
 ITU-T G.992.2 (G.lite)
 ITU-T G.994.1 (G.hs)
 ITU-T G.992.3 (G.dmt.bis)
 ITU-T G.992.5
 Max 6 kilometers
Data Rates
 Downstream: Up to 24Mbps
 Upstream: Up to 3.5Mbps (With Annex M enabled)
ATM Features
 UNI 3.1/4.0,ATM Adaptation Layer Type 5-AAL5
 Multiprotocol encapsulation over ATM (RFC 1483)
 UBR, CBR, VBR-rt, VBR-nrt
 Supports 8PVCs
PPP Features
 PPP over ATM (RFC 2364)
 PPP over Ethernet (RFC 2516)
Switching Features
 IGMP snooping
 IGMP multicast
 Port VLAN
 Tag VLAN
 IEEE 802.1d transparent learning bridging
Routing Features
 Classical IP and ARP over ATM (RFC 1577/2225), MER, RIP V1/V2
 Static routing, IP, TCP, UDP, ARP
 NAT, NAPT, DNS, DDNS, DHCP Server
 UPnP, Virtual Server, DMZ
 SIP, H323 ALG
Security
 Stateful Packet Inspection (SPI)
 NAT
 Packet Filter
VPN Pass Through
 IPSec/PPTP/L2TP Pass-through
QoS
 IP Type of service(ToS)
 802.1p
Device Management
 HTTP, TELNET, Console
 Administration and operation software (firmware) upgradable locally by WEB, TFTP, FTP, Console
 SNMP V1/V2
 CWMP(TR-069)



Hardware Specification
Ports
 1 10/100M LAN Ports(RJ45)
 1 Line Port(RJ11)
 1 USB 1.1 port
LED Indicators
 USB, LAN, ADSL, ACT, Power
Dimensions (W*D*H)
 6.5*4.3*1.1 in.(165*108*28 mm)
Environment
 Operating Temperature: 0?~40? (32?~104?)
 Storage Temperature: -40?~70? (-40?~158?)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing
