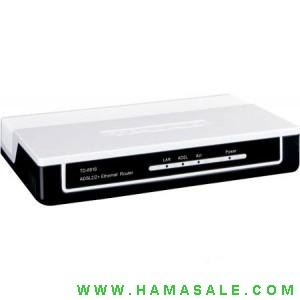

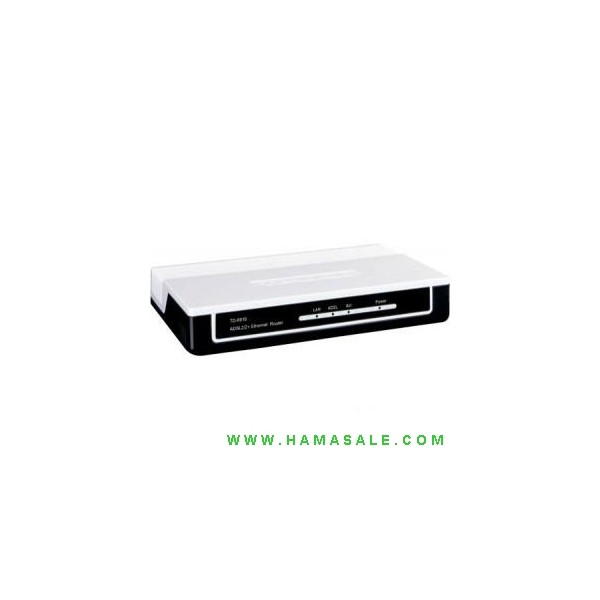

TP-Link TD-8816 ADSL2/2+ Ethernet Modem Router

Kategori

Informasi

Online Help

Yahoo Messenger Online Help

Penyedia barang

TP-Link TD-8816 ADSL2/2+ Ethernet Modem Router

Kirim ke teman
Cetak
Lihat Ukuran Penuh

TP-Link TD-8816 ADSL2/2+ Ethernet Modem Router Akses kecepatan tinggi DSL koneksi internet * Sampai dengan kecepatan 24Mbps * QoS prioritas berdasarkan Ketentuan Layanan, DSCP, tipe layanan atau 802.1p * Triple Aktif Firewall: SPI, NAT dan Packet Filter * Mendukung DHCP, Universal Plug-and-Play (UPnP)* Mengadministrasikan dan Upgrade Router jauh melalui Internet.

Lebih detail

In the same category

Info lainnya
Comments (0)

TD-8816 is designed to provide a simple and cost-effective ADSL Internet connection for a private Ethernet network.

The Router is easy to use. The TD-8816 connects to an Ethernet LAN or computers via standard Ethernet ports. The ADSL connection is made using ordinary telephone line with standard connectors. Multiple workstations can be networked and connected to the Internet using a single Wide Area Network (WAN) interface and single global IP address. The advanced security enhancements, IP/MAC Filter, Application Filter and URL Filter can help to protect your network from potentially devastating intrusions by malicious agents from the outside of your network.

ADSL
The TD-8816 supports full-rate ADSL2+ connectivity conforming to the ITU and ANSI specifications. In addition to the basic DMT physical layer functions, the ADSL2+ PHY supports dual latency ADSL2+ framing (fast and interleaved) and the I.432 ATM Physical Layer.

The device comes with a CD with an Easy Setup Assistant that helps you step by step to configure your Internet connection. This feature allows even novice users to setup the router products without sacrificing any key features, just play the AUTO-RUN CD bundled to have your network set up quickly & hassle-free.

Features

Access a high-speed DSL Internet connection
Up to 24Mbps downstream speed
Supports Annex M, which can double upstream data rates
QoS prioritization based on ToS, DSCP, service type or 802.1p
Triple Active Firewalls: SPI, NAT and Packet Filter
Supports DHCP, Universal Plug-and-Play (UPnP), and includes a user-friendly Setup Wizard which takes you through configuring your network, step by step
Administer and Upgrade the Router Remotely over the Internet

Specifications

Software Specification
ADSL Features	Full-rate ANSI T1.413 Issue 2
	ITU-T G.992.1 (G.dmt)
	ITU-T G.992.2 (G.lite)
	ITU-T G.994.1 (G.hs)
	ITU-T G.992.3 (G.dmt.bis)
	ITU-T G.992.3 (G.dmt.bis)	ITU-T G.992.5
	Max 6 kilometers
	Data Rates	Downstream: Up to 24Mbps
Upstream: Up to 3.5Mbps (With Annex M enabled)	Data Rates
ATM Features	UNI 3.1/4.0，ATM Adaptation Layer Type 5-AAL5
	Multiprotocol encapsulation over ATM (RFC 1483)
	UBR, CBR, VBR-rt, VBR-nrt
	Supports 8PVCs
PPP Features	PPP over ATM (RFC 2364)
PPP Features	PPP over Ethernet (RFC 2516)
Switching Features	IGMP snooping
	IGMP multicast
	Port VLAN
	Tag VLAN
	IEEE 802.1d transparent learning bridging
Routing Features	Classical IP and ARP over ATM (RFC 1577/2225), MER, RIP V1/V2
	Static routing, IP, TCP, UDP, ARP
	NAT, NAPT, DNS, DDNS, DHCP Server
	UPnP, Virtual Server, DMZ
	SIP, H323 ALG
Security	Stateful Packet Inspection (SPI)
	NAT
	Packet Filter
VPN Pass Through	IPSec/PPTP/L2TP Pass-through
QoS	IP Type of service(ToS)
QoS	802.1p
Device Management	HTTP, TELNET, Console
	Administration and operation software (firmware) upgradable locally by WEB, TFTP, FTP, Console
	SNMP V1/V2
	CWMP(TR-069)

Hardware Specification
Ports	1 10/100M LAN Ports(RJ45)
Ports	1 Line Port(RJ11)
LED Indicators	LAN, ADSL, ACT, Power
Dimensions (WDH)	6.54.31.1 in.(16510828 mm)
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
