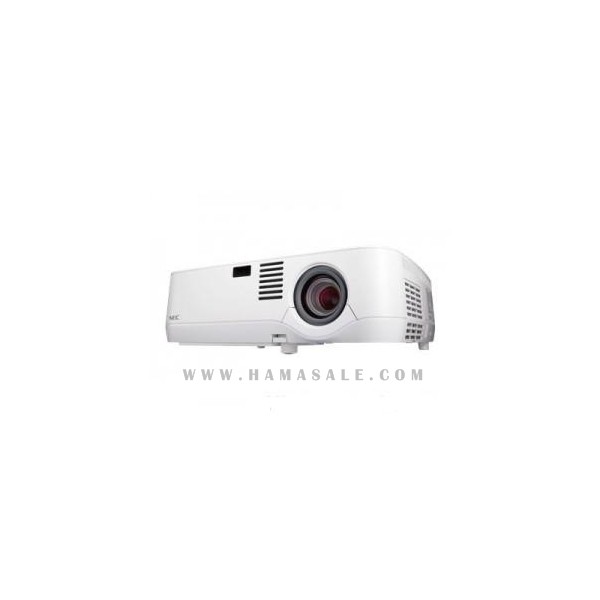

LCD Projector NEC NP 310 Network Enabled Projector, XGA, 2000 Ansi Lumens, Contrast Ration 2000:1, Quick Cooling, Umur Lampu 4000 sampai 5000 Jam (Standard / Eco Mode).
Garansi Resmi 2 Tahun Service dan Spare Part (Lampu 500 jam).
Berat kirim 5Kg, bisa kirim via Mex Barlian.
| Model Name | NP310 | ||||
| LCD Panel | 3LCD, 3-chip optical engine / Dichroic mirror separation-prism convergence system | ||||
| 0.63 inch LCD (Aspect Ratio 4:3) |
|||||
| Resolution *1 | 1024 × 768 pixels | ||||
| Lens | Manual Zoom / Focus, Zoom ratio 1-1.2, Throw ratio 1.5-1.8:1, F1.7-2.0, f=19.8-23.7mm |
||||
| Lamp (Eco Mode / Normal Mode) | 145W / 180W AC | ||||
| Lamp Life *2 (Eco Mode / Normal Mode) | 5000H / 4000H | ||||
| Image Size (Projection Distance) | 21 to 300 inches (0.7m to 11.3m) | ||||
| Colour Reproduction | 16.7Million Colours Simultaneously, Full Colour | ||||
| Light Output *3 *4 | Normal Mode | 2600 ANSI lumens | 2200 ANSI lumens | ||
| Eco Mode | Approx.80% of Normal Mode | ||||
| Contrast Ratio (White / Black) *4 | 500 : 1 | 2000:1 | 500:1 | ||
| Maximum Resolution | Analog | UXGA (1600 x 1200) with Advanced AccuBlend | |||
| Digital | SXGA+(1400 x 1050) with Advanced AccuBlend (NP405/NP305 are not available) |
||||
| Scan Rate | Horizontal | 15kHz to 100kHz (RGB : 24kHz or over) | |||
| Vertical | 50Hz to 120Hz | ||||
| Keystone Correction | Vertical | Auto/Manual Approx.± Max 30 degrees | |||

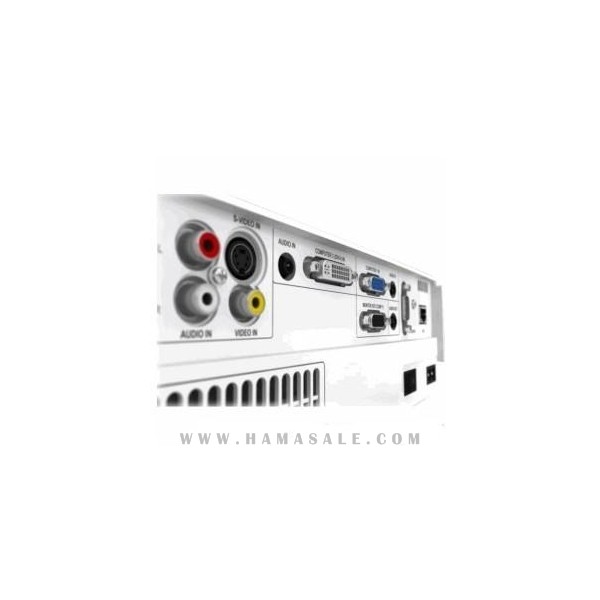

| Input Terminals | 2 Computer Input | 1 D-Sub Mini 15pin (Computer 1 IN), 2 D-Sub Mini 15pin : NP405/NP305 (Computer 1&2 IN) |
VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA / 480i, 480p, 576i, 576p, 720p, 1080i RGB : 0.7Vp-p/75Ω , H/V Sync : 4.0Vp-p/TTL Level , Composite Sync : 4.0Vp-p/TTL Level Positive/Negative Polarity, Sync on G : 1.0Vp-p/75Ω(with Sync) Negative Polarity |
||
| 1 DVI-I (Computer 2 IN (Except for NP405/NP305)) |
DVI-I connector (29pins) DVI digital (with H.D.C.P*5), DVI analog Maximum resolution SXGA/60Hz, Specification is same as Computer 1 IN |
||||
| 2 Stereo Mini Jack | Stereo L/R 0.5Vrms/22kΩ or over | ||||
| 1 Component Input (2 Component Input : NP405/ NP305) |
1 D-Sub Mini 15pin (Sharing with Computer 1 IN), 2 D-Sub Mini 15pin : NP405/NP305 (Sharing with Computer 1&2 IN) |
Y:1.0Vp-p/75Ω(with Sync), Cb/Cr(Pb/Pr):0.7Vp-p/75Ω, DTV : 480i, 480p, 720p, 1080i/60Hz, 576i, 576p, 1080i/50Hz, DVD Progressive (50/60Hz) |
|||
| Audio input is sharing with computer 1 IN | Specification is same as Computer 1 IN | ||||
| S-Video Input | 1 Mini DIN-4pin | Y:1.0Vp-p/75Ω, C:0.286Vp-p/75Ω | |||
| 1 RCA pin x 2 | Stereo L (MONO)/R : 0.5Vrms/22kΩ or over | ||||
| Video Input | 1 RCA pin | NTSC/NTSC4.43/PAL/PAL-N/PAL-M/PAL-60/SECAM | |||
| 1.0Vp-p/75Ω | |||||
| Audio Input is Sharing with S-Video |
Specification is same as S-Video IN | ||||
| Output Terminals | RGB Output | 1 D-Sub Mini 15pin | Only Computer 1 In can be output | ||
| Audio Output | 1 Stereo Mini Jack | Stereo L/R 0.5Vrms/22kΩ or over, Selected Audio Signal input from Computer1(Component), Computer2, S-Video or Video | |||
| LAN Port | RJ - 45 | - | 100BASE-TX/10BASE-T | - | |
| Control Terminals | PC Control | 1 D-sub 9pin | RS-232C | ||
| Built-In Speaker | 7W Monaural | ||||
| Quietness (Eco Mode / Normal Mode) | 29dB / 35dB | ||||
| Environment | Operational Temperatures | 5°C to 40°C (Eco Mode selected automatically at 35°C to 40°C), 20% to 80% Humidity (Non-Condensing) | |||
| Storage Temperatures | -10°C to 50°C, 20% to 80% Humidity (Non-Condensing) | ||||
| Power Requirement | 100 to 240V AC, 50Hz/60Hz (G version : 200 to 240V AC, 50Hz/60Hz) |
||||
| Input Current | 100 - 130V | 3.2 / 1.4A | |||
| 200 - 240V | 1.5A | ||||
| Power Consumption | Normal Mode | 100 - 130V | 251W | ||
| 200 - 240V | 239W | ||||
| Eco Mode | 100 - 130V | 203W | |||
| 200 - 240V | 195W | ||||
| Standby Mode | 100 - 130V | 8W | 10W | 8W | |
| 200 - 240V | 8W | 10W | 8W | ||
| Power-saving Mode | 100 - 130V | 0.6W | |||
| 200 - 240V | 0.7W | ||||
| Heat Dissipation | 100 - 130V | 857BTU (Max) | |||
| 200 - 240V | 816BTU (Max) | ||||
| Dimensions (W x H x D) (Not Including Protrusions) | 308mm x 93.5mm x 262mm | ||||
| Weight | 2.97kg | 3.0kg | 2.97kg | ||
| Accessories | Lens cap, Remote control, Batteries(AAA x 2), VGA signal cable(1.8m), Power cable, Soft Case(Except for NP405/NP305), DVI to VGA adapter(Except for NP405/NP305), User's manual(CD-ROM), Quick setup guide |
||||
| Regulations | UL/C-UL Approved (UL 60950-1, CSA 60950-1) Meets DOC Canada Class B requirements Meets FCC Class B requirements Meets AS/NZS CISPR.22 Class B Meets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3) Meets Low Voltage Directive (EN60950-1, TÜV GS Approved) |
||||
| *1 : | Effective pixels are more than 99.99%. |
| *2 : | Lamp life is defined as the average time span for the brightness of the lamp to be reduced by half, it dose not refer to the warranty period for the lamp. |
| *3 : | This is the light output value (ANSI lumens) when the [PRESET] mode is set to [HIGH-BRIGHT]. If any other mode is selected as the [PRESET] mode, the light output value may drop slightly. |
| *4 : | Compliance with ISO21118-2005 |
| *5 : | What is HDCP/HDCP technology? HDCP is an acronym for High-bandwidth Digital Content Protection. High bandwidth Digital Content Protection (HDCP) is a system for preventing illegal copying of video data sent over a Digital Visual Interface (DVI). If you are unable to view material via the DVI input, this does not necessarily mean the projector is not functioning properly. With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC). |
| All specifications are subject to change without notice. | |
