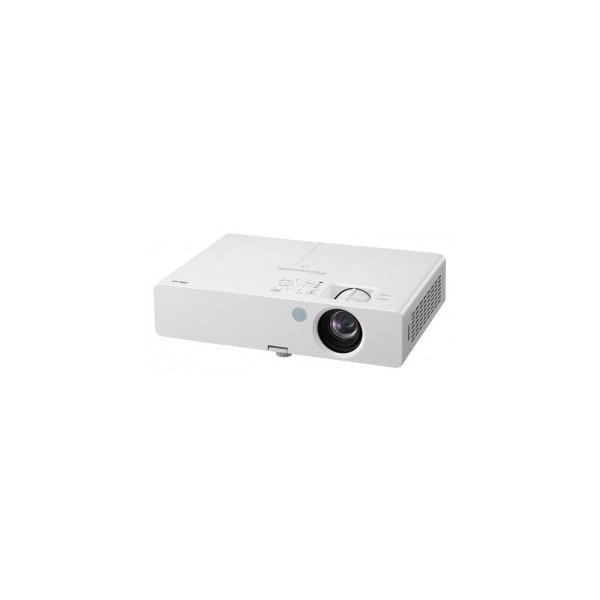

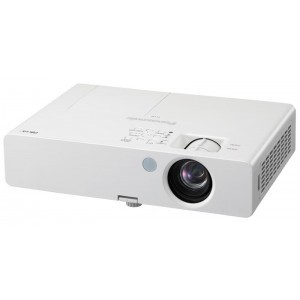

LCD Proyektor Panasonic PTLB 2

LCD Proyektor Panasonic PTLB 2, 2600 ANSI Lumens lebih terang, Portable LCD Projector, Resolusi 1024 x 768, berat 2.2kg.

Garansi Resmi 2 Tahun. Kirim seluruh Indonesia.

Order diatas 10 pcs hubungi 085256305203

Lebih detail

Banting harga!
Rp. 6.125.000

Rp. 6.500.000 incl. tax




Power supply 100–240 V AC, 50/60 Hz
Power consumption 290 W
0.4 W at 220-240 V AC, 0.3 W at 100-120 V AC when standby mode set to eco*1, 15 W when standby mode set to normal, 18 W when standby mode set to normal and audio monitor out.
Optical system Dichroic mirror separation/prism synthesis system
LCD panel Panel size 16 mm (0.63") diagonal, 4:3 aspect ratio
Display method Transparent LCD panel (x 3, R/G/B)
Drive method Active matrix
Pixels 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels
Pixel configuration Stripe
Lens Manual zoom (1:1-1:1.2), manual focus,
F 2.00-2.20, f 19.22-22.68 mm,
throw ratio: 1.5-1.7:1
Lamp 220 W UHM lamp (The lamp replacement cycle is 5,000 hours.*2)
Projection size 0.84–7.62 m (33–300 inches) diagonally (4:3 aspect ratio)
Colors Full color (16,777,216 colors)
Brightness*3 2,600 lumens
uniformity ratio*3
Contrast ratio*3 600:1 (full on/full off)
Resolution (RGB)*4 1,024 x 768 pixels (Input signals that exceed this resolution will be
converted to 1,024 x 768 pixels.)
Scanning frequency RGB Horizontal: 15–91 kHz, Vertical: 50–85 Hz
YPBPR 480i (525i): fH 15.75 kHz; fv 60 Hz
576i (625i): fH 15.63 kHz; fv 50 Hz
480p (525p): fH 31.50 kHz; fv 60 Hz
576p (625p): fH 31.25 kHz; fv 50 Hz
720 (750)/60p: fH 45.00 kHz; fv 60 Hz
720 (750)/50p: fH 37.50 kHz; fv 50 Hz
1080 (1125)/60i: fH 33.75 kHz; fv 60 Hz
1080 (1125)/50i: fH 28.13 kHz; fv 50 Hz
1080 (1125)/60p: fH 67.50 kHz; fv 60 Hz
1080 (1125)/50p: fH 56.25 kHz; fv 50 Hz
NTSC, NTSC4.43, PAL-M, PAL60: fH15.75 kHz; fv 60 Hz
PAL, SECAM, PAL-N: fH15.63 kHz; fv 50 Hz
Optical axis shift 5:1 (fixed)
Keystone correction range Vertical: approx. ±30°
On-screen menu 17 languages: English, French, German, Spanish, Italian, Korean, Russian, Chinese, Japanese, Swedish, Norwegian, Danish, Portuguese, Polish, Hungarian, Czech, and Thai
Installation Front/rear, ceiling/desk (menu selection)
Built-in speaker 1 W (monaural), Size: 4 x 2 cm (1-1/16" x 25/32") x 1, oval
Terminals COMPUTER (RGB) 1 IN D-sub HD 15-pin (female) x 1
RGB signal:
G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible)
YPBPR signal:
Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms
COMPUTER (RGB) 2 IN D-sub HD 15-pin (female) x 1
RGB signal:
G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible)
YPBPR signal:
Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms
VIDEO IN RCA pin x 1, 1.0 V [p-p], 75 ohms
S-VIDEO IN Mini DIN 4-pin x 1, Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 ohms
AUDIO IN M3 (L, R) x 2, 0.5 V [rms]
VARIABLE AUDIO OUT M3 (L, R) x 1, 0 –2.0 V [rms]
SERIAL D-sub 9-pin x 1, for external control (RS-232C compliant)
LAN RJ-45 x 1, compatible with PJLink™ (class 1), 10BASE-T/100BASE-TX
Power cord length 2 m (6.6')
Cabinet material Moulded plastic (PC+ABS)
Dimensions (W x H x D)*5 307 x 69 x 210 mm (12-3/32" x 2-23/32" x 8-9/32")
Weight*6 Approx. 2.3 kg (5.07 lbs.)
Operating environment Temperature: 0°–40°C (32°–104°F) *7
Humidity: 20%–80% (no condensation)
Supplied accessories Power cord, Power cord secure lock, Wireless remote control, Batteries for remote control ( AAA type for North/South America, R03 type for Europe/Asia) x2, VGA cable, Carrying bag, Application software (CD-ROM)
Optional accessories ET-PKB2 Ceiling mount bracket
ET-KFB2 Highly durable filter unit
ET-RFB2 Replacement air filter for ET-KFB2
ET-LAB2 Replacement lamp unit


*1: When the standby mode is set to eco, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2: This value is calculated by continuously turning the lamp on for 2 hours and off for 0.25 hour.
The lamp replacement cycle will decrease if the lamp is turned on/off more frequently, or if it is left on for longer intervals.
*3: Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4: Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.
*5: Protruding parts not included.
*6: Average value (excluding lens cap). May differ depending on models.
*7: The operating temperature range is 0°C (32°F) to 35°C (95°F) when used in High-Altitude mode (1,400 to 2,700 m (4,593 to 8,858 feet)). Also, in Lamp Normal mode, if the ambient temperature exceeds 35°C/95°F (30°C/85°F in High-Altitude mode), the light output may be reduced approximately 30% to protect the projector.


The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to illuminate, due to impact or extended use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending on individual lamp characteristics and usage conditions.
The brightness of the lamp will gradually decrease with use.
The projector includes consumable parts. The frequency of replacement for the lamp and other consumable parts will increase if the projector is subjected to extended, continuous use. For details, please consult a service representative.

Jakarta bisa antar pada hari yang sama dengan Biaya Rp. 24.000 per projector.
