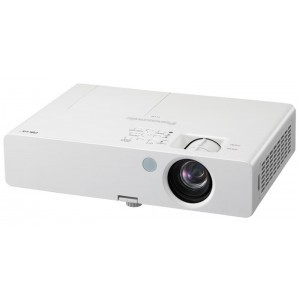

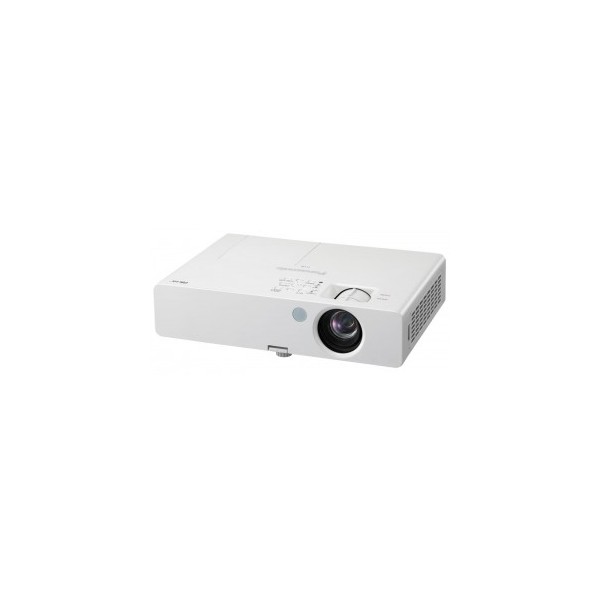

Jual LCD Projector Panasonic PTLB 1, Portable LCD Projector, 2200 ANSI Lumens, Resolusi 1024 x 768, berat 2.2kg.

Garansi Resmi 2 Tahun. Kirim seluruh Indonesia.

Order diatas 10 pcs hubungi 085256305203

Lebih detail

In the same category

Info lainnya
Comments (0)

Spesifikasi

		PT-LB1V
Power supply		100–240 V AC, 50/60 Hz
Power consumption		290 W
		0.4 W at 220-240 V AC, 0.3 W at 100-120 V AC when standby mode set to eco*¹, 15 W when standby mode set to normal, 18 W when standby mode set to normal and audio monitor out.
Optical system		Dichroic mirror separation/prism synthesis system
LCD panel	Panel size	16 mm (0.63") diagonal, 4:3 aspect ratio
	Display method	Transparent LCD panel (x 3, R/G/B)
	Drive method	Active matrix
	Pixels	786,432 (1,024 x 768) x 3, total of 2,359,296 pixels
	Pixel configuration	Stripe
Lens		Manual zoom (1:1-1:1.2), manual focus, F 2.00-2.20, f 19.22-22.68 mm, throw ratio: 1.5-1.7:1
Lamp		220 W UHM lamp (The lamp replacement cycle is 5,000 hours.*²)
Projection size		0.84–7.62 m (33–300 inches) diagonally (4:3 aspect ratio)
Colors		Full color (16,777,216 colors)
Brightness*³		2,200 lumens
Center-to-corner uniformity ratio*³		85%
Contrast ratio*³		600:1 (full on/full off)
Resolution (RGB)*⁴		1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.)
Scanning frequency	RGB	Horizontal: 15–91 kHz, Vertical: 50–85 Hz
	YPBPR	480i (525i): fH 15.75 kHz; fv 60 Hz 576i (625i): fH 15.63 kHz; fv 50 Hz 480p (525p): fH 31.50 kHz; fv 60 Hz 576p (625p): fH 31.25 kHz; fv 50 Hz 720 (750)/60p: fH 45.00 kHz; fv 60 Hz 720 (750)/50p: fH 37.50 kHz; fv 50 Hz 1080 (1125)/60i: fH 33.75 kHz; fv 60 Hz 1080 (1125)/50i: fH 28.13 kHz; fv 50 Hz 1080 (1125)/60p: fH 67.50 kHz; fv 60 Hz 1080 (1125)/50p: fH 56.25 kHz; fv 50 Hz
	S-Video/ Video	NTSC, NTSC4.43, PAL-M, PAL60: fH15.75 kHz; fv 60 Hz PAL, SECAM, PAL-N: fH15.63 kHz; fv 50 Hz
Optical axis shift		5:1 (fixed)
Keystone correction range		Vertical: approx. ±30°
On-screen menu		17 languages: English, French, German, Spanish, Italian, Korean, Russian, Chinese, Japanese, Swedish, Norwegian, Danish, Portuguese, Polish, Hungarian, Czech, and Thai
Installation		Front/rear, ceiling/desk (menu selection)
Built-in speaker		1 W (monaural), Size: 4 x 2 cm (1-1/16" x 25/32") x 1, oval
Terminals	COMPUTER (RGB) 1 IN	D-sub HD 15-pin (female) x 1 RGB signal: G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible) YPBPR signal: Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms
	COMPUTER (RGB) 2 IN	D-sub HD 15-pin (female) x 1 RGB signal: G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible) YPBPR signal: Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms
	VIDEO IN	RCA pin x 1, 1.0 V [p-p], 75 ohms
	S-VIDEO IN	Mini DIN 4-pin x 1, Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 ohms
	AUDIO IN	M3 (L, R) x 2, 0.5 V [rms]
	VARIABLE AUDIO OUT	M3 (L, R) x 1, 0 –2.0 V [rms]
	SERIAL	D-sub 9-pin x 1, for external control (RS-232C compliant)
	LAN	RJ-45 x 1, compatible with PJLink™ (class 1), 10BASE-T/100BASE-TX
Power cord length		2 m (6.6')
Cabinet material		Moulded plastic (PC+ABS)
Dimensions (W x H x D)*⁵		307 x 69 x 210 mm (12-3/32" x 2-23/32" x 8-9/32")
Weight*⁶		Approx. 2.3 kg (5.07 lbs.)
Operating environment		Temperature: 0°–40°C (32°–104°F) *⁷ Humidity: 20%–80% (no condensation)
Supplied accessories		Power cord, Power cord secure lock, Wireless remote control, Batteries for remote control ( AAA type for North/South America, R03 type for Europe/Asia) x2, VGA cable, Carrying bag, Application software (CD-ROM)
Optional accessories	ET-PKB2	Ceiling mount bracket
	ET-KFB2	Highly durable filter unit
	ET-RFB2	Replacement air filter for ET-KFB2
	ET-LAB2	Replacement lamp unit

*1:	When the standby mode is set to eco, network functions such as power on over the LAN will not operate. Also, only certain commands can be received for external control using the serial terminal.
*2:	This value is calculated by continuously turning the lamp on for 2 hours and off for 0.25 hour. The lamp replacement cycle will decrease if the lamp is turned on/off more frequently, or if it is left on for longer intervals.
*3:	Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*4:	Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.
*5:	Protruding parts not included.
*6:	Average value (excluding lens cap). May differ depending on models.
*7:	The operating temperature range is 0°C (32°F) to 35°C (95°F) when used in High-Altitude mode (1,400 to 2,700 m (4,593 to 8,858 feet)). Also, in Lamp Normal mode, if the ambient temperature exceeds 35°C/95°F (30°C/85°F in High-Altitude mode), the light output may be reduced approximately 30% to protect the projector.

NOTES ON USE

•	The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to illuminate, due to impact or extended use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending on individual lamp characteristics and usage conditions.
•	The brightness of the lamp will gradually decrease with use.
•	The projector includes consumable parts. The frequency of replacement for the lamp and other consumable parts will increase if the projector is subjected to extended, continuous use. For details, please consult a service representative.

Jakarta bisa antar pada hari yang sama dengan Biaya Rp. 24.000 per projector.
