Wireless 2,4Ghz Outdoor Multifunction AP 54Mbps, 14dBi Antenna, Power 26dBm, POE

Fitur

• Up to 8 Wireless Operation Modes, IP65 weather proof enclosure
• IEEE802.3af PoE standard compliance, Built-in 14dBi patch antenna
• SSH, SSH2, HTTP, HTTPS, and Telnet Managements
• Up to 26dBm Output Power (South America)
• Bandwidth Control and Antenna Alignment Signal Survey
• Wireless Client Isolation, Watchdog, ACK Timeout, TX power adjustable
• 4MB Flash, 16MB DRAM
• Up to 15KM distance with Built-in Antenna
• Clear Signal Anti-Interference Technology
• Up to 35Km distance with external 24dBi Grid Antenna

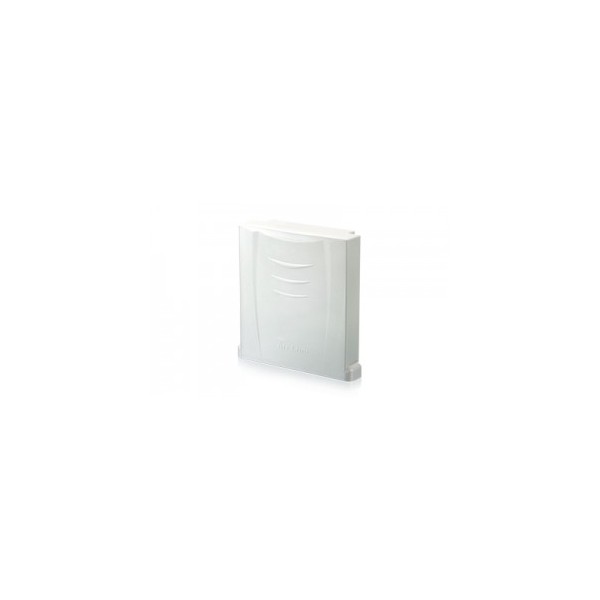

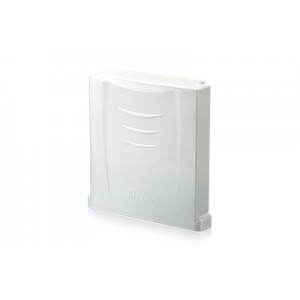

As the leading global WISP solution provider, AirLive understands the application environments of WISP operators. The AirLive WH-5420CPE is the new generation of AirLive Outdoor Wireless CPE that is built upon years of experience and heritage from our high performance Access Points series. It is equipped with the latest Clear Signal Technology and earth shattering 40dBm combined output power(for South America only) deliver the longest and most stable wireless connection possible.

8 Wireless Operation Modes
The AirLive WH-5420CPE can operate in 8 different wireless modes. It can work as a Wireless Router, AP, Client, Repeater, Bridge, and much more. Whether it is for home, office, or WISP; the AirLive AP has a solution for you.

Clear Signal Technology
AirLives Clear Signal Technology uses advanced hardware filtering and sensitivity adjustment to cancel out signal interference, often found in the highly congested 2.4GHz spectrum, making the WH-5420CPE the most interference resistant AP currently in the industry.

Up to 40dBm of Output Power
AirLive high quality hardware let the AP expand its RF output power up to 26dBm using South American firmware. Thats 4 times the output power of regular AP! Combined with the 14dBm antena, it means much greater distance and coverage than the competition.

Traffic Control QoS Function
Traffic Control is a great tool to control the bandwidth of the WISP subscribers. Therefore, the WISP operators can offer different class of connection speeds for different subscription fees - just like the ADSL service! The AirLive advance Traffic Control firmware can control the bandwidth by Interface or IP/MAC.

Dynamic Signal Survey Function for Antenna Alignment
Having trouble align your antenna correctly to the other outdoor AP.The AirLive Wireless Signal Survey function tells you the receiving signal strength dynamically as your antenna turns. It automatically refreshes itself in the process, therefore, making antenna alignment much simpler than before.

Wireless Site Survey Connection Wizard
During a new WISP service installation, the installer will need to find out which outdoor AP provide the best signal in the area for connection. The AirLive wireless site survey function provides one step setup for this process. First, the site survey page shows which AP has the strongest the signal. Then the installer performs antenna alignment by using the signal survey function. At last, the installer simply clicks on connect button to establish connection. The site survey is available even in AP mode, so the installer can check the channels used by surrounding APs to avoid interferences.

Features:

Up to 8 Wireless Operation Modes, IP65 weather proof enclosure

IEEE802.3af PoE standard compliance, Built-in 14dBi patch antenna
SSH, SSH2, HTTP, HTTPS, and Telnet Managements
Up to 26dBm Output Power (South America)
Bandwidth Control and Antenna Alignment Signal Survey
Wireless Client Isolation, Watchdog, ACK Timeout, TX power adjustable
4MB Flash, 16MB DRAM
Up to 15KM distance with Built-in Antenna
Up to 30Km distance with external 24dBi Grid Antenna

Hardware
1 x 10/100Mbps LAN Port compliant with IEEE802.3af standard
4MB Flash, 16MB SDRAM
IP65 Weather proof Enclosure

Antenna
Built-in 14dBi patch antenna
30 degree vertical and horizontal angle
VSWR: 1.5:1 Max
Polarization: Linear, Vertical

Security
64/128-bit
802.1x Radius Support
WPA/WPA2-PSK support
WPA Enterprise support in AP/WDS mode

Software/Firmware
Site Survey
DHCP Client
Wireless access control by MAC address (deny or accept)
WPA Support (WPA personal and enterprise)
Web-based configuration via popular browser (MS IE, Netscape)
Firmware upgrade and configuration backup via Web

Environmental
Operating temperature: 0~60
Operating humidity (non-condensing): 20~80%
Storage temperature: -20~65
Storage humidity: 95% Max

Power Supply
802.3af PoE 48V, 0.35A

Product Size
( L x W x H (mm) )? 225 x 122 x 225 mm
